If you want to replace the battery on your Samsung Galaxy S7 Edge, you only need to do a few things. Find out exactly how you need to proceed.
Samsung Galaxy S7 Edge: Preparations to replace the battery
Note: Doing the following will void your Samsung Galaxy S7 Edge warranty.
- Before you begin, you will need a smartphone repair kit.
- First switch off the device and remove your SIM card and the SD card from the device.
- Warm the back of the smartphone so that you can then carefully lift the cover with the suction cup.
- As soon as a gap forms, you can use a pick to carefully remove the cover.
- After you have removed the cover, you now need to loosen and remove the 12 screws that secure the antennas.
- After that, remove the top, bottom and right antenna also by lifting carefully to access the battery. To do this, place a spatula in the gap and carefully pry out the antennas.
Instructions for battery replacement
Now you are ready to remove and replace the battery:
- First you need to make sure you have the right new battery ready.

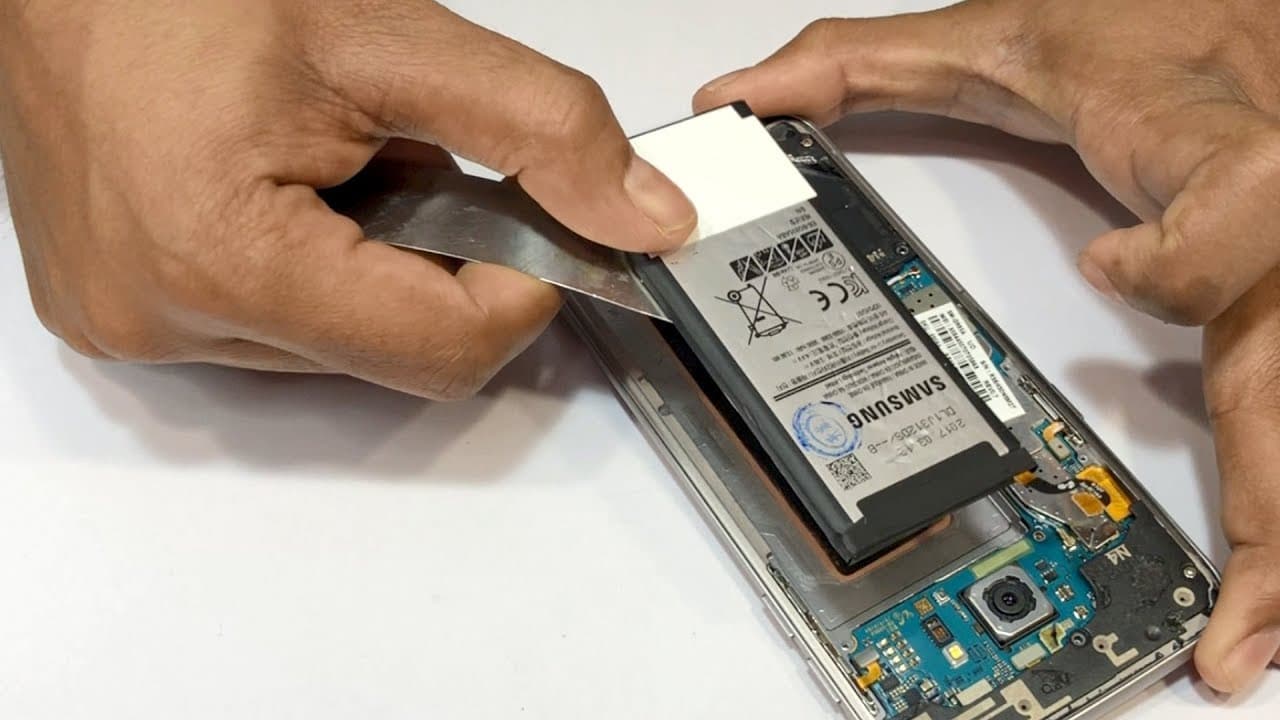

- Before you can remove the old battery, you still need to unhook it: loosen the fastener next to the camera and then carefully lift the battery out.
- After the new battery has been inserted, finally reconnect all the parts together.
- At the end you have to press the back cover firmly so that the glue is well distributed.
- Now your Samsung Galaxy smartphone is ready for use again.
